Working in your eRoom

This topic is organized into the following sections:

See also: Logging in to and out of eRoom

Guided tour

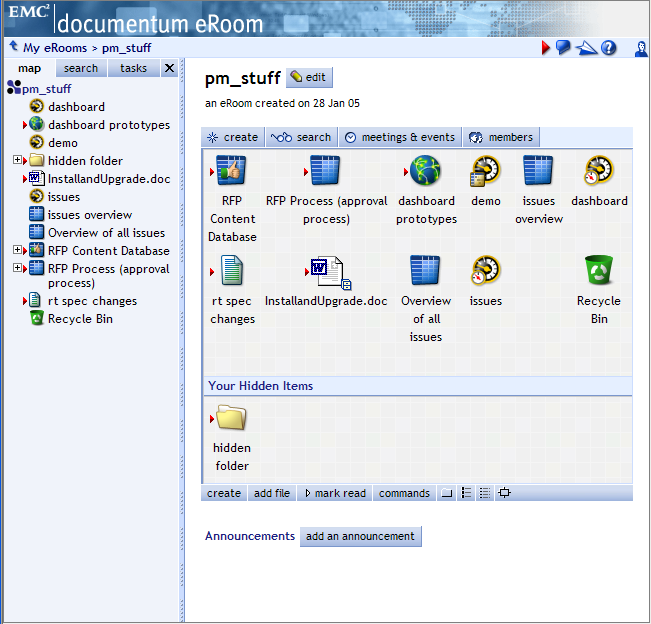

When you create or visit an eRoom, you'll see something like this:

Banner graphic

A banner displays across the top of every eRoom page. It can be a custom graphic, or the default banner graphic.

Tip: To find out if you're using the plug-in, point to the banner graphic on any eRoom page to see a ToolTip showing that information.

Control bar

Below the banner is the control bar that contains the path (flush left) and tool buttons (flush right).

Most eRoom pages have a control bar, including your My eRooms page.

Navigation path

In the control bar, a path tracks your location in the eRoom (like a trail of bread crumbs). Click the links in the path to navigate in your eRoom, as follows:

Opens the parent of the current item. From the front page (top) of your eRoom, goes to your My eRooms page.

My eRooms >

Opens your My eRooms page.

eRoom name >

Opens the front page of your eRoom.

item name > [...]

Opens the item with that name, unless it's the last item in the path, which is the current item, and is not a link.

Tool buttons

At the right-most edge of the control bar, eRoom pages have the following tool buttons:

logout (optional)



Click to log out of eRoom.


Note: The logout button is optional and might not be enabled at your site. In this case, just close your browser window to end your eRoom session.

If there are unread items in your eRoom, click to open the next item marked unread (). Click repeatedly to cycle through all new information in your eRoom.

Click to open the intercom so you can chat with other members in your eRoom, or alert them to join you there.

Click to send an email alert message to other members.

Click to open eRoom Help.

Point to these presence-indicating icons to show the names of members currently in your eRoom; click to open the intercom to chat with them.

The map

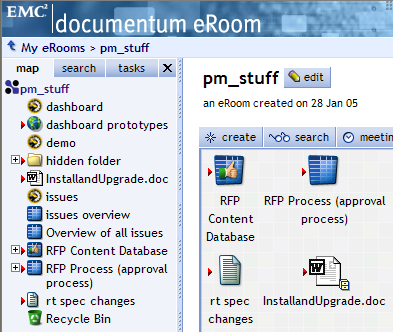

When you first open your eRoom, the page has a side panel called the map, which initially shows an expandable tree of all the items on the front page of your eRoom.

The map is visible unless you hide it. When the item tree is showing in the map, you can do the following:

  • Right-click item icons to display a pop-up menu of commands.

  • Drag or drop items from or onto the map.

  • Click the name of the eRoom to open its front page.

  • Click an item's icon or its name to open it. A shaded bar highlights where you are.

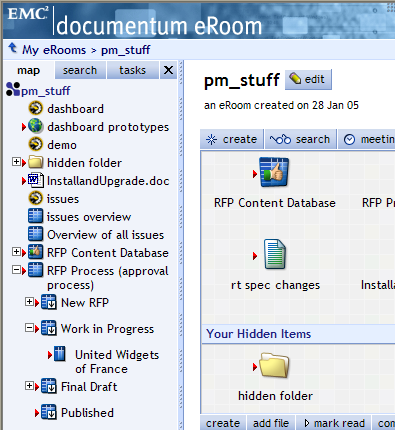

  • Click to expand the tree and show the contents of items.

  • Click to collapse the tree and hide the contents of items.

  • Click in the header bar to close the map.

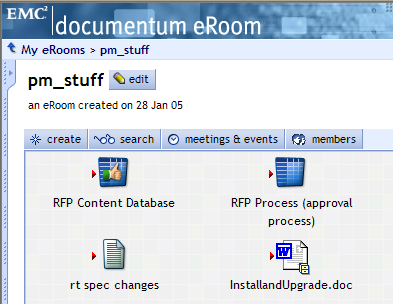

When the map is closed, its border lies flat against the left edge of the eRoom window.

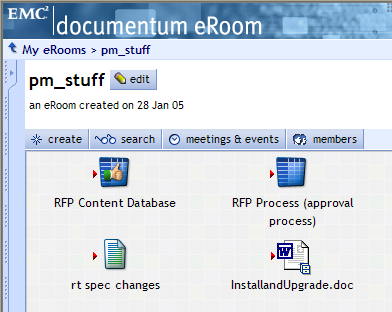

When you point to the closed map's border, it "glows" by alternating between light and dark blue.

  • To open the closed map, click anywhere along its border.

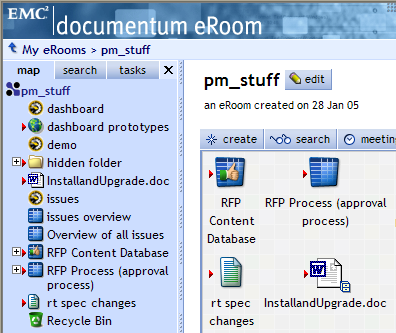

When the map is open and you point to the button, the background inside the map glows.

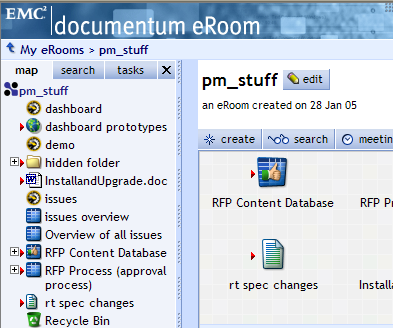

The border along the right edge of the open map also glows when you point to it.

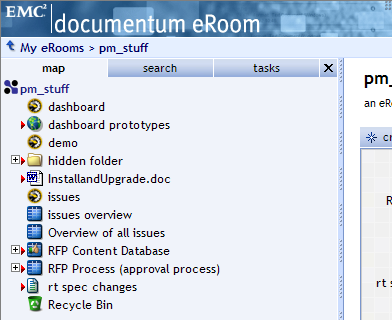

The map has two widths -- regular and wide.

  • When the map is open to its regular width, click the border to make it wide.

  • When the map is open wide, click the border to close it.

  • When the map is closed, click the border to open the map to its regular width.

When the map is open, you can switch between three panes.

Tasks pane

eRoom helps you organize your time by rounding up your tasks and listing them in the map. The tasks pane shows a list of all your tasks from all databases and project plans in your eRoom.

A database task is yours in either of these cases:

A project plan task is yours if it fits all of these criteria:

Project plan milestones are omitted. The project task name and (if the pane is in wide mode) finish date are shown. If the task is overdue, the finish date appears in red.

As is true for items in a search results list, you can drag tasks out of the tasks list but not into it.

See also: To search using map

Page title and credits

Below the path, the title of the page appears in bold, with an edit icon if you have Edit rights to the eRoom or item. Under the title, page credits identify what the page is and when it was created. For an item, the credits also identify the member who created it (its owner).

See also: Contacting another eRoom member

Button bar

On the front page of your eRoom, below the page title and credits, the button bar has the following controls:

Button

Action

Click to create items.

Click to search in your eRoom.

Click to open the eRoom's Events page.

Click to open the eRoom's member list page. You can edit your own member information, view information about other members, or (if you are a coordinator) manage membership for your eRoom.

On eRoom item and member list pages, the button bar contains only context-specific controls, and only those for which you have the appropriate access rights to operate. For example, the button bar on a discussion page contains just the "start a new topic" button; if you are the eRoom's coordinator (or an administrator), the button bar in the Recycle Bin has an "empty recycle bin" button.

Item box

The item box is located to the right of the map, below the title, credits, button bar, and any status information, welcome message, or item description. It shows the contents of the eRoom or of the current item (attachments, database entries, discussion topics, and so forth).

In the item box you can create and act on  (view, edit, move, delete, and so forth) items. eRoom comes with built-in items for doing your work such as folders, calendars, notes, and links. You can navigate eRoom using the item box by clicking item icons or names.

If you can open any items that are hidden from other members, a separate area of the item box called "Your Hidden Items" lists these items. Hidden items you can open appear as usual in the map, in search results, in notification emails, etc.

Command bar

The command bar appears at the bottom of an item box (or an attachments box). It contains eRoom commands, as well as tool buttons for changing your view of items.

Pop-up menus

eRoom commands are also available on pop-up menus. To display one, right-click an icon in the map, in the item box, or on an empty area of the item box. To display the eRoom's pop-up menu, go to the map and right-click the icon to the left of the eRoom's name.

Recycle bin

Unless your eRoom coordinator has turned this feature off, the front page of your eRoom has a recycle bin that is similar to the recycle bin on your Windows desktop. With a recycle bin, items you delete go into the bin where they remain until they are copied out or restored, or until they are deleted from the bin. Without a recycle bin, deleted items are permanently removed from the eRoom.

Coordinators can see all items in the recycle bin, but if you open the recycle bin, you see all the items you deleted, plus any items with the Open list set to "Any member who can get to it" when they were deleted. In the recycle bin, you can

Note: You can also drag and drop eRoom items into and out of the recycle bin.

The recycle bin only holds page-level items such as folders, topics, databases, database entries, and so on. eRoom elements below the page level, such as comments and embedded polls, do not appear in the recycle bin.

Contacting another eRoom member



Basic eRoom tasks

Task

Action

Open an item.

Click on it either in the map or in the item box.

Create an item.

In the button bar, click , or the context-specific variation (such as "new entry" or just "create").

Or, on the command bar, click "create", or the context-specific variation.

Or, in an empty area of the item box, right-click to display the pop-up menu and pick "Create Item".

Show all commands.

On the command bar, click "commands".

Act on an item.

Right-click the item and pick a command from the pop-up menu.

Act on multiple items.

On the command bar, click the "view details" button (), or  click "commands". This displays items in a detailed list with check boxes.

Select () each item that you want to act on.

Then, either right-click and pick a command, or click a command on the command bar.

Move an item.

Right-click an item and pick "cut" or "copy" from the pop-up menu. Go to where you want to put the item and pick "paste" from the pop-up menu.

Or, you can use drag and drop.

Go to the front page of your eRoom.

At the top of the map, click on the eRoom's name.

Or, in the path, click on its name.

Contact another eRoom member

In comment threads, announcements, and owner credits for all eRoom items (for example, "a database created by Joe Doe"), a member icon appears. This icon shows one of five potential states, as follows:

-- no instant messaging

-- online

-- idle

-- offline

-- unknown

Note: Instant messaging is only available with eRoom Instant Messaging Integration Services.

When you hover over one of the member icons, ToolTip text shows the member's status. Clicking a member icon displays a menu with these potential choices:

  • Contact via email -- Opens the email client registered with your operating system, and creates a new message. If the member has provided an email address, the "To" field is pre-filled with that email address.

  • Contact via instant message (eRoom Instant Messaging Integration Services only) -- eRoom attempts to open Windows Messenger on your local machine. If you're using the plug-in, and if the member has permission to use IM and has valid IM account information, the member's IM name is pre-filled in the IM window.

  • See info -- Displays the members Member Information page.



Get online help.

Click (help) in the control bar.

Optional eRoom controls

Depending on the type of item, many eRoom pages have optional controls, which you can enable or disable when you create or edit an item.

Control

Action

Click to post notices or news about your project.

Click to make notes or contribute ideas about the contents of a page.

Click to take a vote in a comments area without creating a separate poll item. The Create Poll wizard opens.

Include space for comments and votes is an option for most eRoom items. When this option is turned on, the item pages have "add a comment" and "take a vote" buttons.

Include box for attachments is an option for some eRoom items (such as notes, project plans, databases, calendar events, and dashboards). When it is turned on, the item pages have attachment areas, which are item boxes without a button bar. You can create and act on items in attachment boxes just as you do in item boxes (such as in folders and on eRoom front pages).

eRoom commands

To display all commands on the command bar, click "commands". To display a pop-up menu, right-click an item or in an empty area of an item box or attachment box.

Note for Apple Computer users: On Netscape 7, the right-click menu works as described here. On Internet Explorer for Mac, and Apple's Safari browser, the right-click menu is displayed when you press OPTION-click. While Macs come with a one-button mouse, you can open a "right-click" menu when you press CTRL-click. If a two-button mouse is attached to your Mac, the right button does the same thing.

Command

Where

Description

View

Item pop-up menu

Opens an item for viewing.

For an eRoom, opens its front page.

Edit

Item pop-up menu

Plug-in only: For a file, reserves it for editing, opens it in its editor, and automatically uploads changes and releases the reservation(s) when you're done.

Browser only: For a file, asks if you want to edit it, change its name, or replace it.

For any other item, opens the item's Edit page (or Edit wizard) so you can modify its properties.

For an eRoom, opens its Edit eRoom page.

Rename

Item pop-up menu

Opens the Rename Item page so you can give the item a new name.

Create Item

Command bar & item box pop-up menu

Opens the Create page so you can pick the type of item you want to create.

Add File

Command bar & item box pop-up menu

Opens the Add File page so you can browse your computer for the file you want to add, add a file from the Content Server (eRoom Enterprise only), create a file in your eRoom (plug-in only), decide if you want to track versions of the file, link to the Content Server (eRoom Enterprise only), create a private draft of a file, or upload another file right after this one.

Track Versions

File item pop-up menu (not available for Content Server-linked files, which are version-tracked in the Content Server)

Turns on version tracking for the unlinked file. For a file with it on, turns it off for the file.

Show Versions

File item pop-up menu (only available for files that have eRoom version tracking turned on)

Opens the file's version notes page, which shows information about the current version, an item box listing all versions (the Version History), and an area for viewing or recording Version Notes. In the Version Notes section, you can also turn off version tracking or take a vote.

Print View

Command bar for databases, project plans, and calendars

Opens a print view page that shows just the database, dashboard, or project plan content. Online-specific controls such as the map, icons, and buttons are omitted. You can follow the (non-printing) instructions on a print view page to print the content of a database, dashboard, or project plan item.

Access Control

Command bar & item pop-up menu

Opens the Access Control page for the item you have selected. If you have Edit rights to that item, you can modify its access lists. These lists specify who has what kind of access. If you select multiple items, you can set access control for all of them at once.

Notification

Command bar & item pop-up menu

Opens the Notification page for the item you have selected. Lets you specify how often, if at all, you want eRoom to notify you when the selected item changes.

For an eRoom, you can change notification settings for the entire eRoom.

Content Server Link...

File item pop-up menu (only available with eRoom Enterprise)

Opens the Content Server Link page, from which you can create a Content Server-linked file, change where an existing Content Server-linked file is stored (within the same repository), or unlink an existing Content Server-linked file.

Content Properties...

File item pop-up menu (only available with eRoom Enterprise)

Opens the WDK Properties component, initialized with the file's properties, in a new window.

Go to Content Server...

File item pop-up menu (only available with eRoom Enterprise, and only if access to Webtop is enabled on your eRoom server)

Starts a Content Server session using the Webtop client in a separate browser window.

Preview

File item pop-up menu (only available with eRoom Enterprise, and only if the current version of the file has an associated rendition)

Gets the default rendition for the current version of the file from the Content Server, and displays it using the appropriate application on the client.

Custom Fields

Command bar & item pop-up menu

Opens the Edit Custom Fields page for the item you have selected. If you have edit rights to that item, you can specify values for custom item properties, such as status or priority. This command only appears if your administrator has defined any custom fields for items in your eRoom.

Select All

Command bar

Selects the check box for every item in the item box.

Cut

Command bar & item pop-up menu

Marks an item for moving -- the name of item you cut is grayed out in the item box and in the map until you paste the item elsewhere, either in your eRoom or in another eRoom in the same site.

Note: If moving to an eRoom on a different facility or server, use the same browser window for both the Cut and Paste commands.

Copy

Command bar & item pop-up menu

Makes a copy of the selected item and puts it on the eRoom clipboard. You can then paste it elsewhere in the same site.

Note: If copying to an eRoom on a different facility or server, use the same browser window for both the Copy and Paste commands.

Copy Link

Command bar & item pop-up menu

Creates a link to the selected item and puts it on the eRoom clipboard. You can then paste the link elsewhere in your eRoom or in another eRoom in the same site.

Paste

Command bar & item box pop-up menu

Places in a new location in your eRoom items or links cut or copied from the same or different eRoom in the same site.

Note: If pasting to an eRoom on a different facility or server, use the Paste command in the same browser window in which you cut or copied the item.

Delete

Command bar & item pop-up menu

After confirming, moves selected items into the recycle bin, if your eRoom has one.

Note: If your eRoom does not have a recycle bin, deleted items cannot be recovered. In that case, use the "cut" command if you want to paste an item elsewhere.

Restore

Command bar & item pop-up menu (only available in the recycle bin, and only if your eRoom has one)

Automatically copies the selected items and pastes them into the container from which they were deleted. If eRoom cannot complete the restore operation for any reason (such as access control changes or if the parent container was deleted), you can copy and paste items to restore them manually.

History

File item pop-up menu (only available for files protected with rights management)

Opens the File History page, which shows the file's rights-management history.

Mark Read

Command bar & item pop-up menu

Removes the unread mark () from next to the selected items. If you have no items selected, removes the unread mark from all items in the item box.

For an eRoom, marks all items as having been read.

Mark Unread

Command bar & item pop-up menu

Places an unread mark () next to the item you select. If you have no items selected, places an unread mark next to all items in the item box.
